AV-FP economical airflow sensors
AV-FP economical airflow sensors
Price range: £27.00 through £52.00

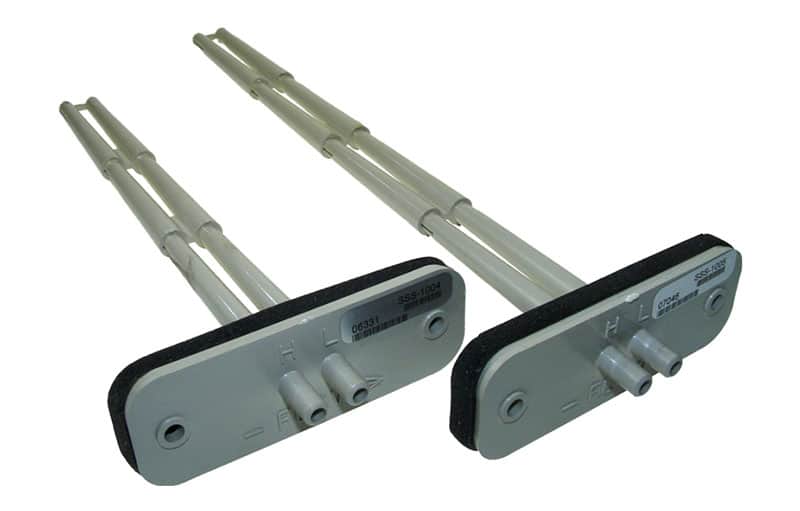

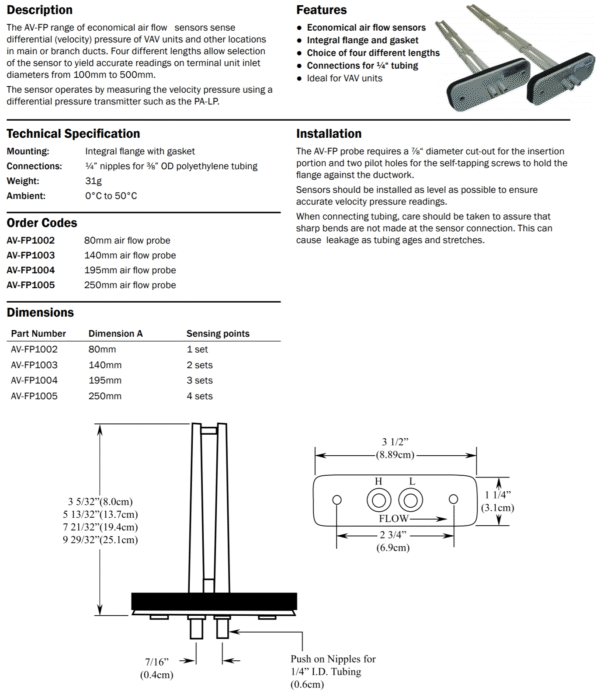

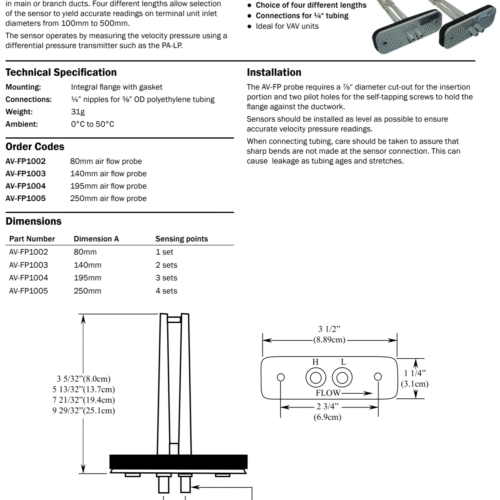

The AV-FP range of economical airflow sensors senses the differential (velocity) pressure of VAV units and other locations in main or branch ducts.
The AV-FP range of economical airflow sensors measures the differential pressure (velocity) of VAV units and other locations in main or branch ducts. Four lengths allow selection of the sensor to yield accurate readings of terminal unit inlet diameters from 100mm to 500mm.

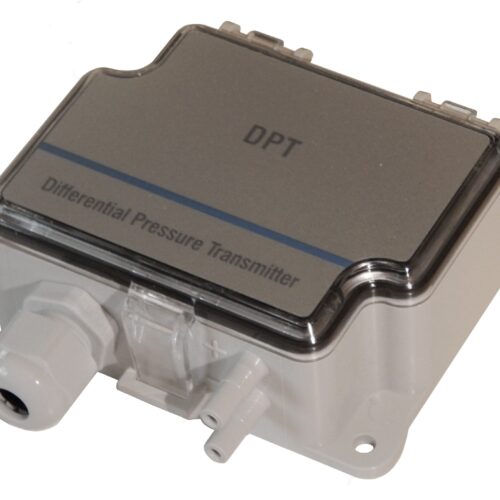

The sensor operates by measuring the velocity pressure using a differential pressure transmitter such as the PTH-3202.
Specification
Mounting: Integral flange with gasket.
Connections: ¼” nipples for ⅜” OD polyethene tubing.
Ambient: 0°C to 50°C
| Length | 80mm, 140mm, 195mm, 250mm |
|---|
You may also like…
-

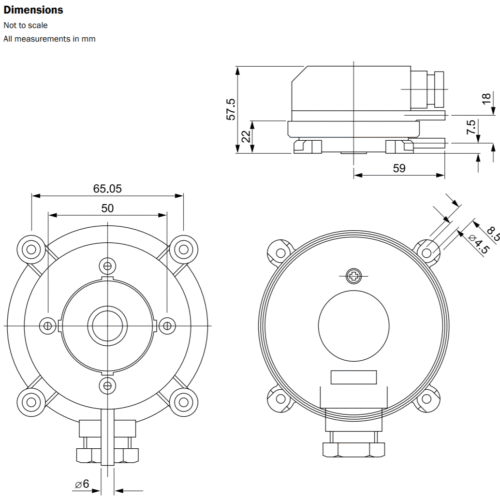

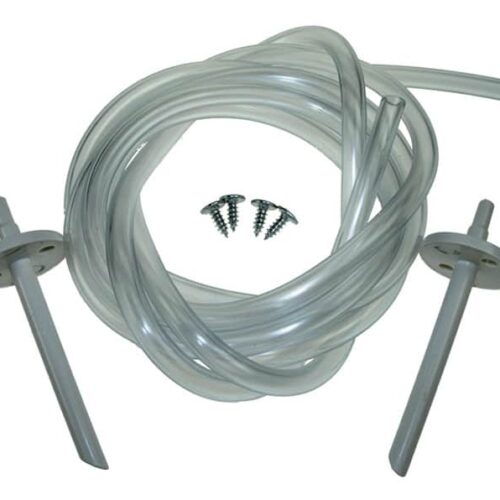

Air Differential Pressure Switch 6mm ID push-on tubing with Duct Kit
£19.00 Select options This product has multiple variants. The options may be chosen on the product page -

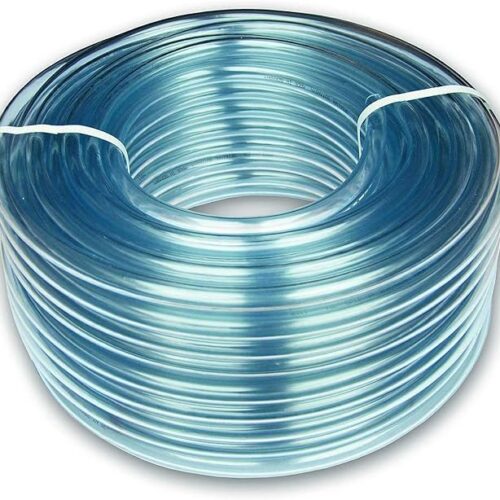

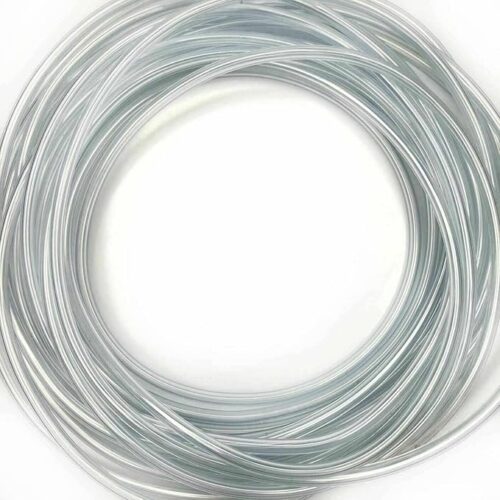

Clear PVC Flexible Hose Pipe 5mm ID – 7mm OD for Pitot Tubes
Price range: £0.40 through £99.00 Select options This product has multiple variants. The options may be chosen on the product page
Related products
-

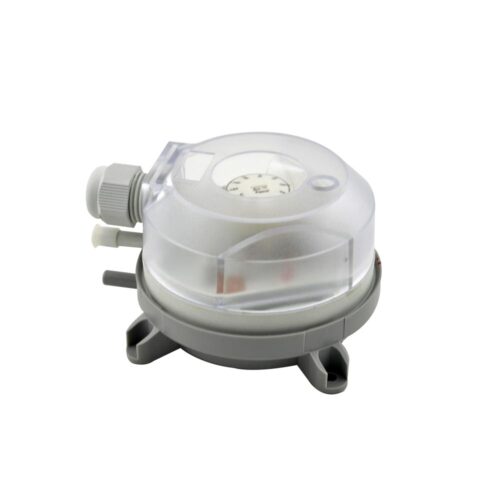

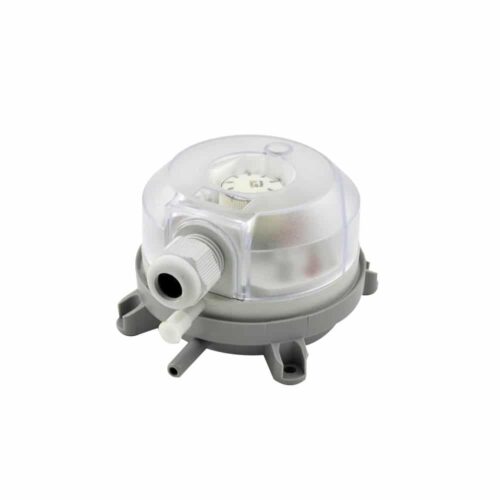

IP65 Air Differential Pressure Switch 930 range with Duct Kit
