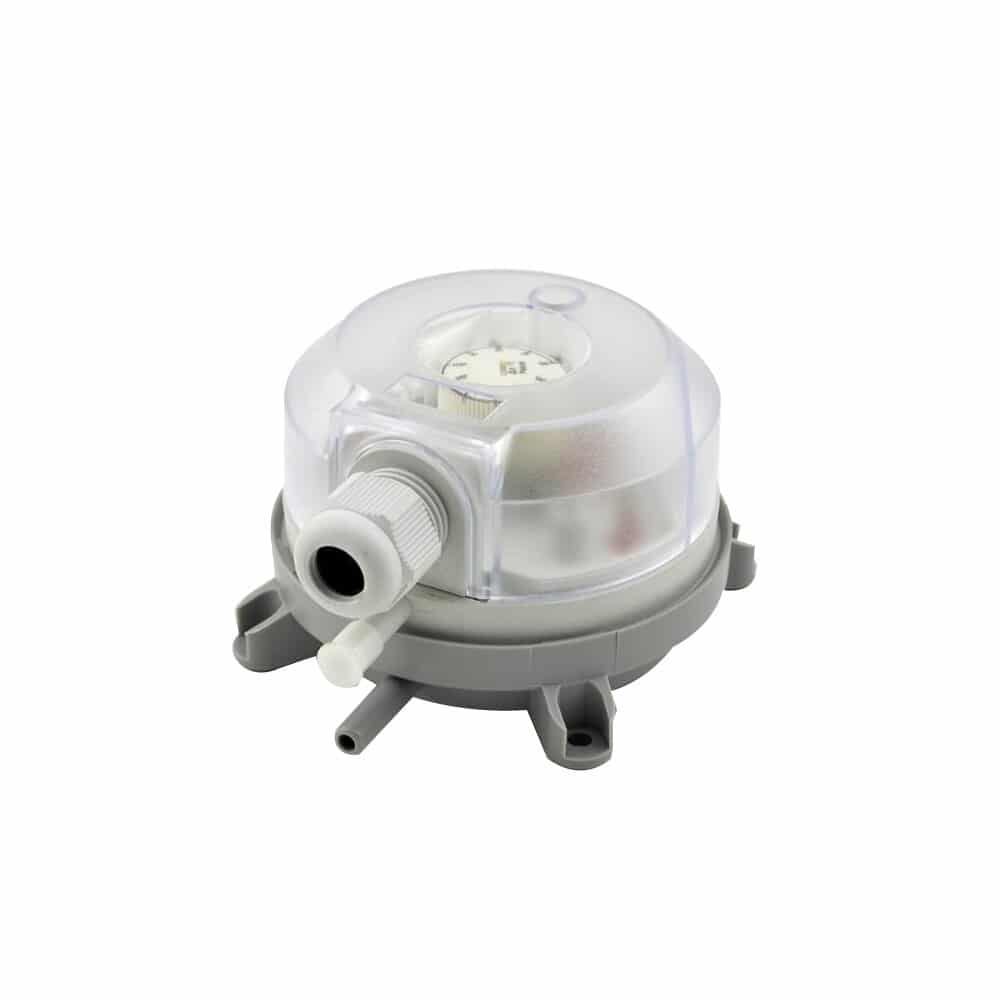

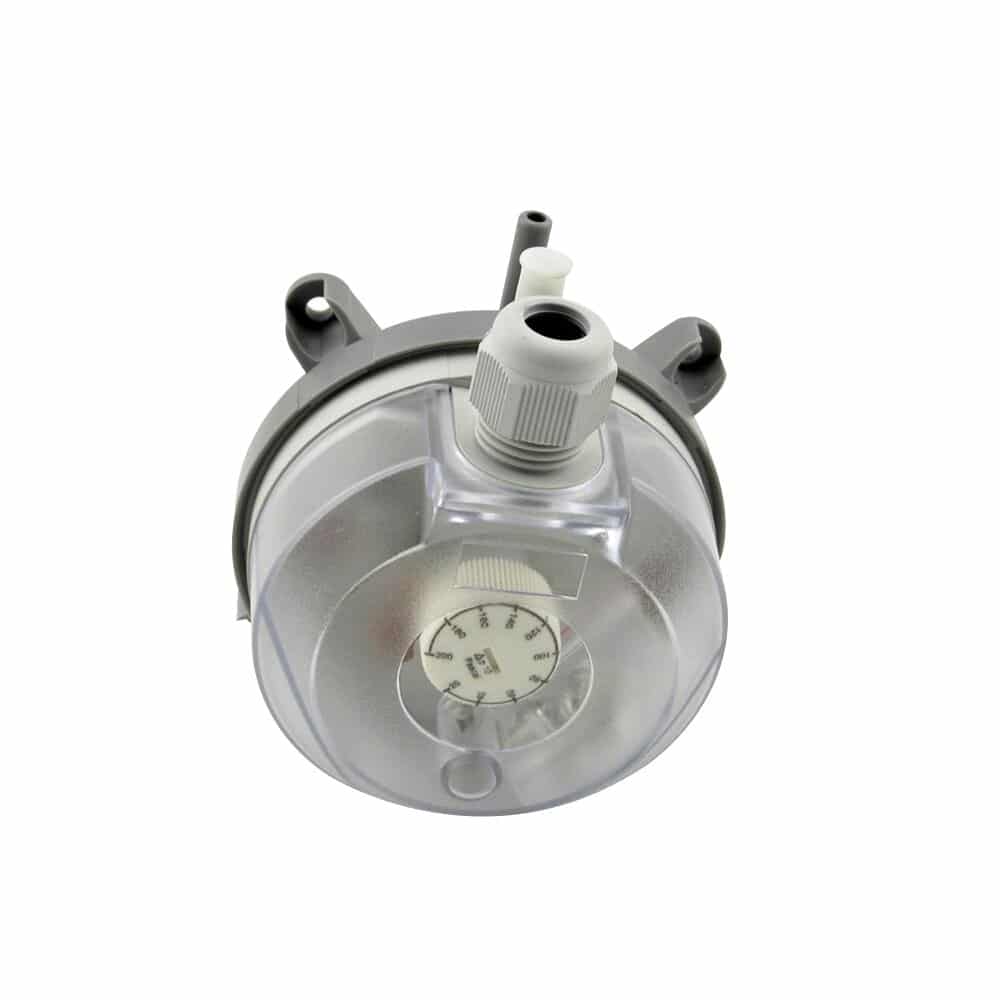

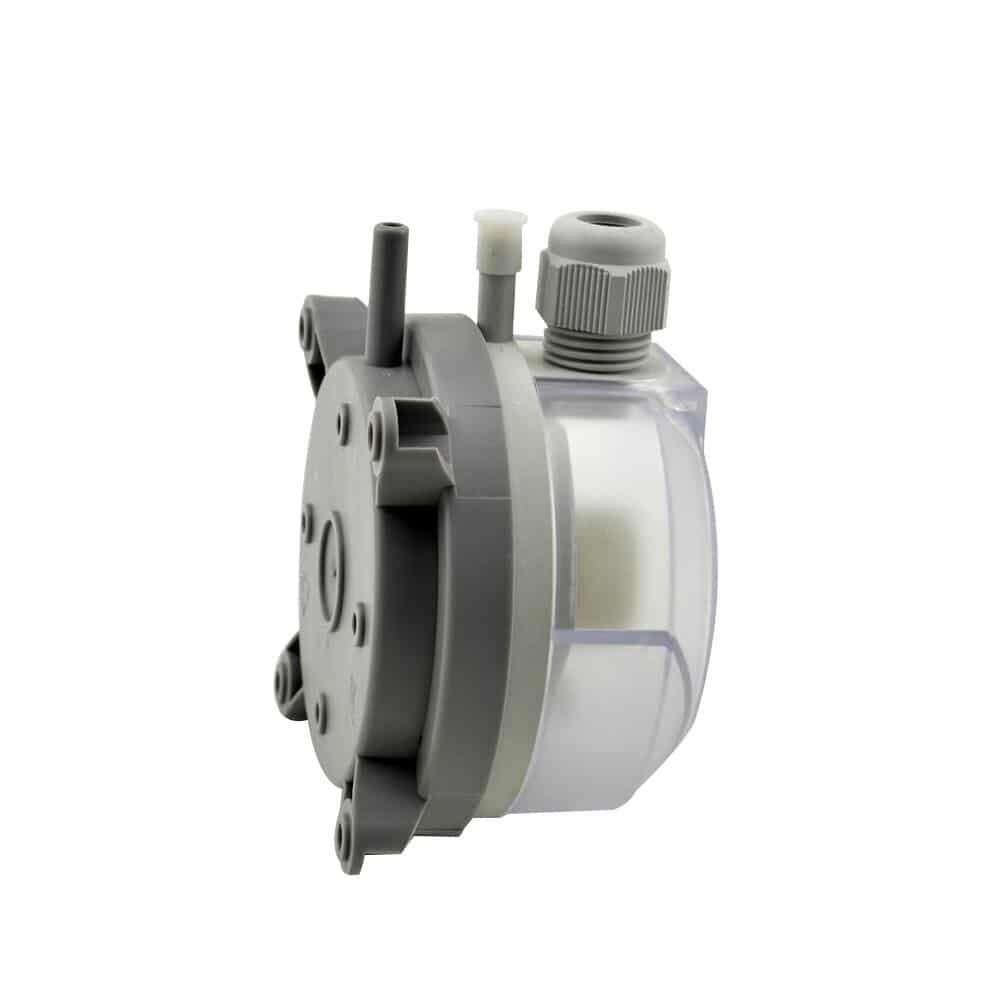

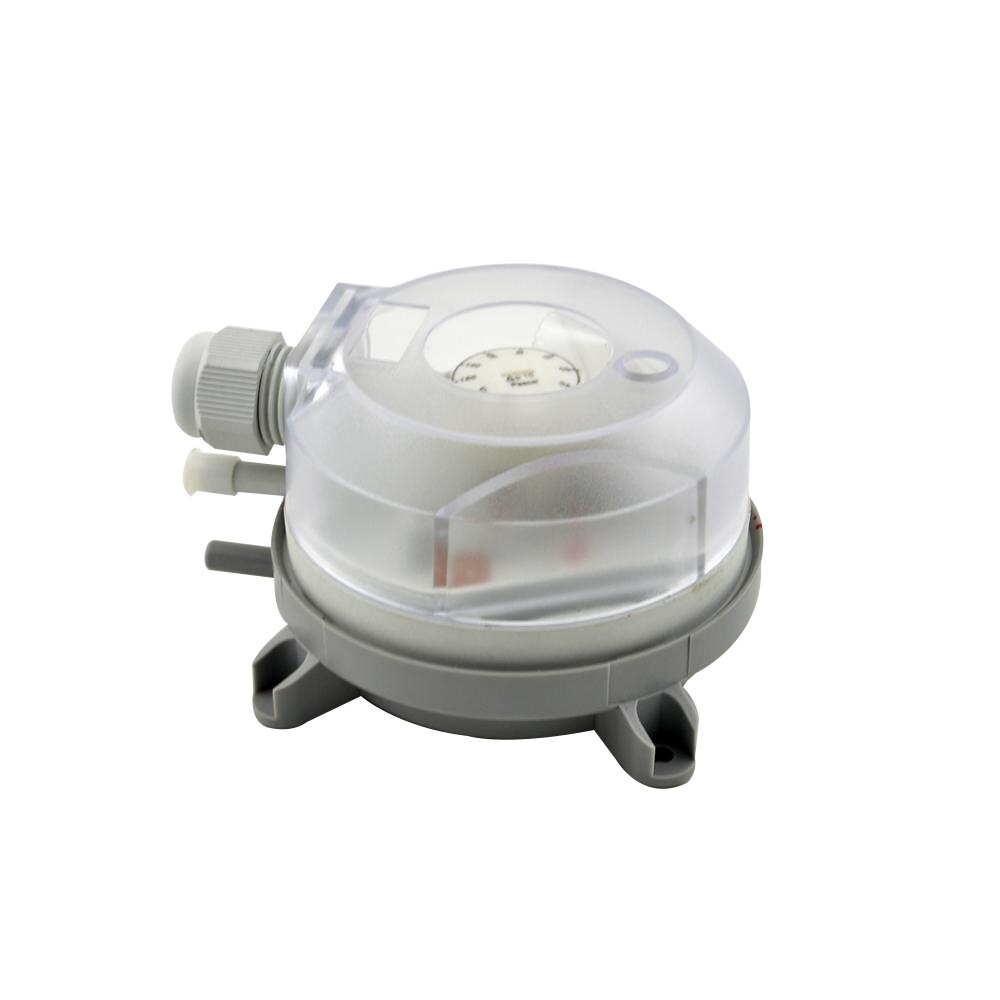

Air Differential Pressure Switch IP65 with Duct Kit

£49.35

The 930 range of air differential pressure switches is suitable for low differential switching applications and is ideal for providing an indication of fan status or ‘filter dirty’ conditions mounted in an IP65 weatherproof enclosure.

Pascals

20-300 Pa

50-500 Pa

200-1000 Pa

Clear

- +

This 930 range of air differential pressure switches is suitable for low differential switching applications and is ideal for indicating fan status or ‘filter dirty’ conditions.

Product Code: 930-83-IP65

Pressure Connections: 6mm ID push-on tubing

Electrical Rating: 1.5A (0.4) @ 250Vac

Approvals: Switch according to VDE0630UG1652

Connections: Via 0.25” receptacles

Cable Entry: M20

Housing Material: Plastic moulding

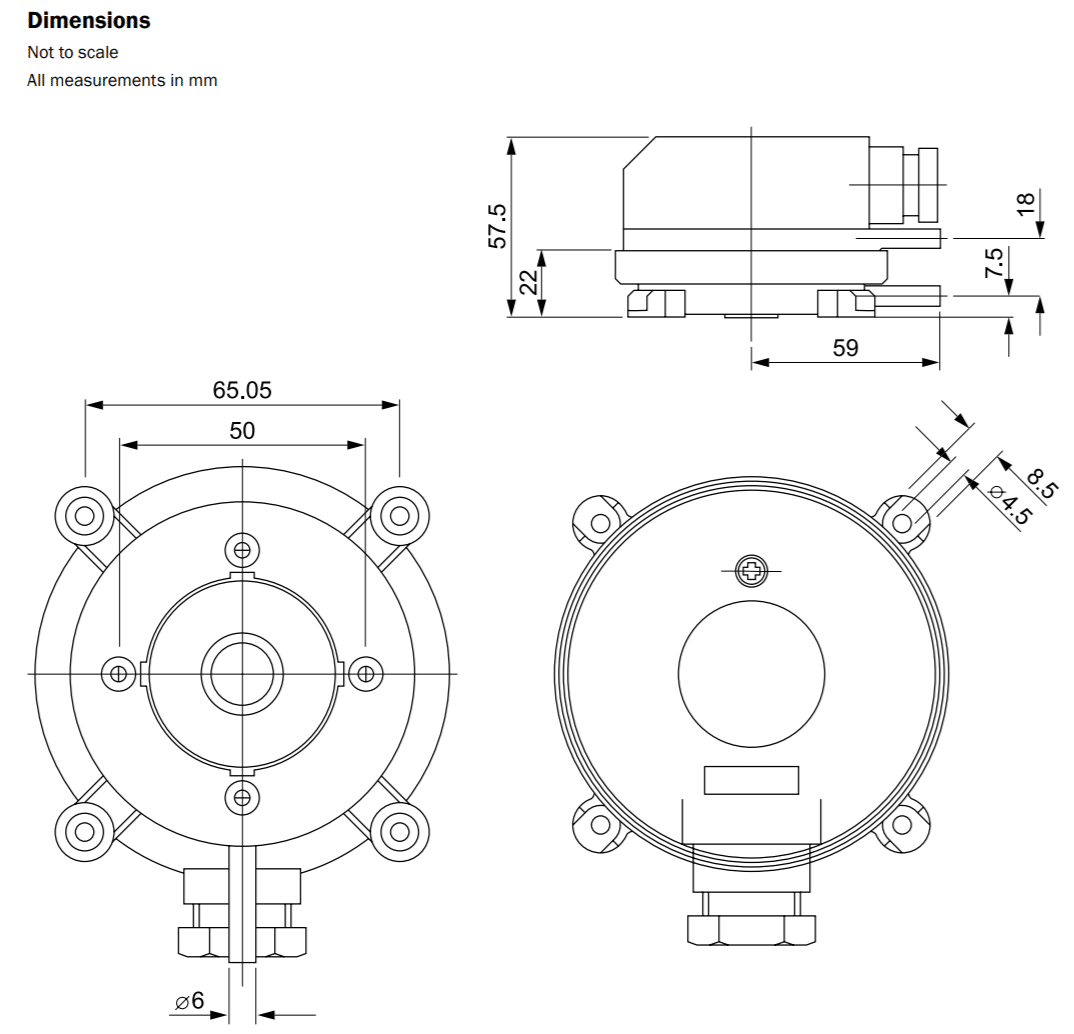

Protection: IP65 mounted in 150 x 110 x 75mm enclosure c/w nipples.

Ambient Range: -20ºC to +85ºC

Installation Category: IEC 664 Category II

Pollution Degree: IEC 664 Degree 1
